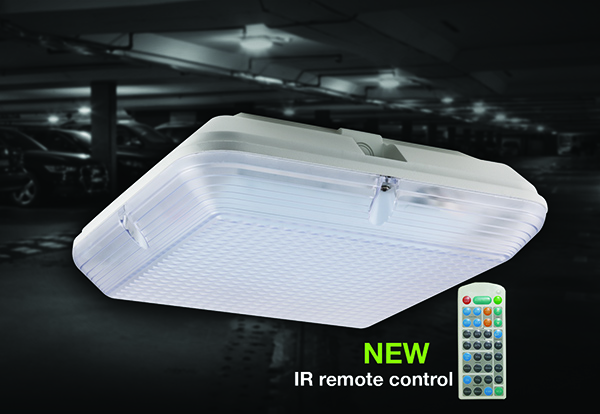

Cham Eco New 600Px

Chamaeleon Eco

Up to 93% energy savings

A value offering for low occupancy spaces

Product enquiry

Overview

The Chamaeleon Eco, designed by enLighten Australia, it complements the Chamaeleon range to offer a complete back of house lighting solution for residential strata common areas, commercial and industrial applications.

It is an excellent choice for fire stairs, car parks and corridors, with both emergency and non emergency options available. Easy to install using a screw less gear tray with pre-drilled holes and a large terminal block.

Product Downloads

Click the below links to download guides, datasheets and more.

Secure Zone Documents

Login to view the latest IES files, spacing guides, installation guides and frequently asked questions.

Login
Australian Designed 1 Ceiling Mount 1 Daylight Sensor 1 Microwave Sensor 1 remote control 1 emergency 1 (1) IP65 Rating 1 1K10 1 5 Year Warranty 1 Core Range (1)
Highlights

Key Features

  • Integrated microwave motion sensor triggers automatic switching between full and standby light output in standard and emergency models
  • Daylight harvesting
  • Commissioning tool - Easily adjustable with infrared, universal remote
  • Smart Connect base for easy install, removal & maintenance. Maintenance can be performed by a handyman without isolating power
  • High performance LUMILEDS LEDs
  • Expected life > 54,000hrs
  • Adjustable full and standby lighting levels
  • Indoor or outdoor use supported by water and dust proof rating of IP65
  • IK10 - Highest level of impact resistance
  • IP65 - Ingress protection
  • Emergency and non emergency options available
  • Australian design
  • VEU approved
  • IPART approved



Cham Eco Hi Res

Applications

Corridors Fire stairs Plant rooms Store rooms Undercover car parks
Technical Info

TECHNICAL INFORMATION

  PRODUCT RANGE
  EN-SL-S  Ceiling mount standard
  EN-SL-E   Ceiling mount emergency
  OPTICAL
  Light source   Lumileds LED
  Lumen output     2500 lumen
  CRI   Ra>80
  CCT   4000K







  ELECTRICAL
  Power consumption   22W full light output (standard), 25W (emergency)
  3W standby light output (Standard) and 6W (emergency)
  Operating frequency   50/60 Hz
  Operating voltage range   100 -240 V AC
  Power factor   >0.9 240 V AC at full load
  EMERGENCY LIGHT
  Battery type    7.2V NiCD 1800mAh
  Discharge time   90 minutes
  Emergency classification   D50
  ENVIRONMENTALLY
  IP rating    IP65
  Impact rating   IK10
  Weight   2.5kg standard, 3kg emergency
  Controls                               Microwave motion sensor & PE
  daylight sensor standard.
  Optional IR remote control
Product Review

Allan Hoy, Building Manager

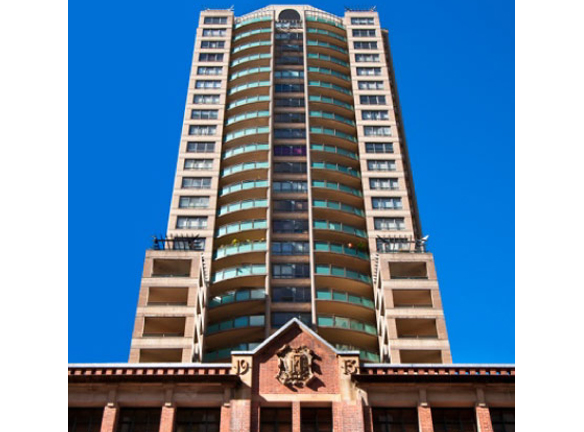

Hyde Park Towers

'8 years on at Hyde Park Towers and only 6 drivers have needed replacing. When we reached out to enLighten this year, they didn't hesitate to replace the drivers and renew the life of our Chamaeleon Eco's. I am delighted at the quality and longevity of this product.

Thank you enLighten for supporting your product even after 8 years and all your efforts in making a real environmental impact.'
