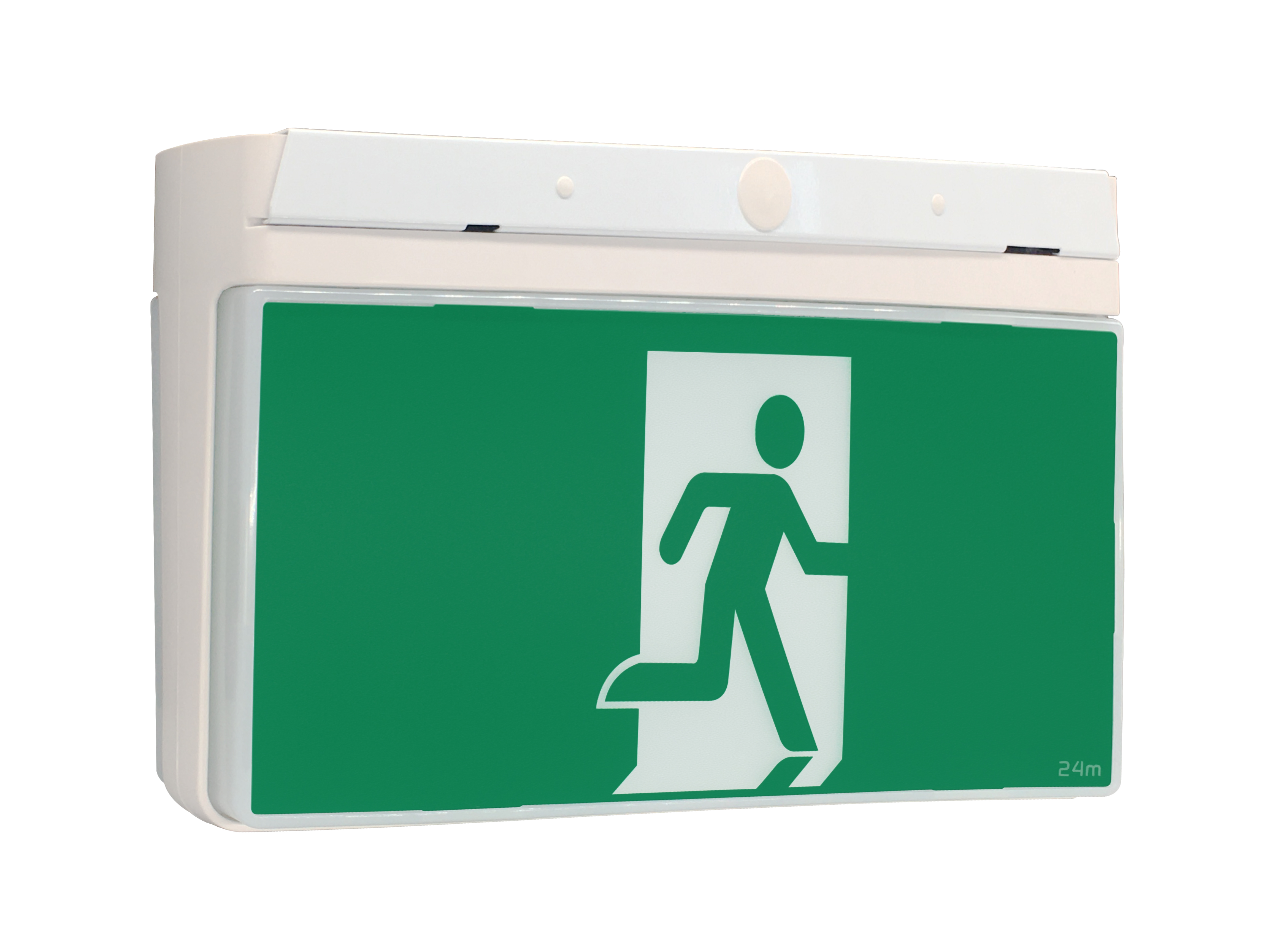

Mirador Exit

Maintained LED Exit Sign with Slide’n’Connect quick fit bracket

Product enquiry

Overview

The Mirador Exit Sign is a highly reliable, longlife and cost effective product that complies with AS/NZS 2293.

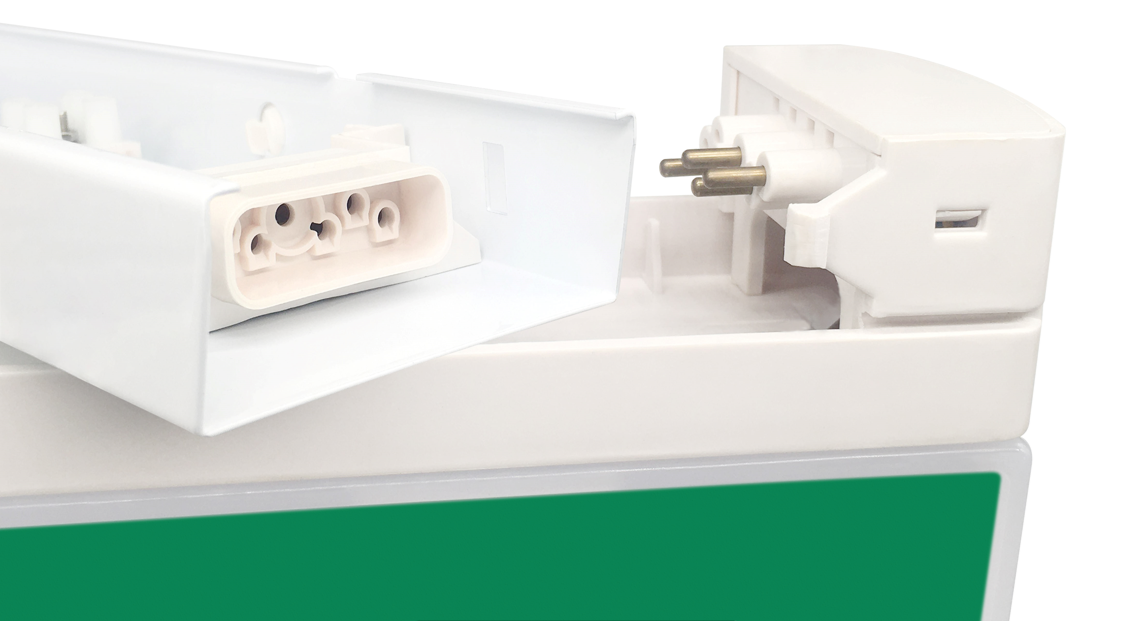

The Slide’n’Connect quick fit bracket allows for fast ceiling or wall mount installation, simple wiring and ease of maintenance.

This one box solution has a range of decals for every location. Our Exit Sign uses environmentally friendly LiFePO4 battery.

This product performs the dual role as a Maintained Exit Sign with max 24m viewing
distance & a Maintained Emergency Light with D3.2 emergency classification. It is well suited for use in commercial, educational, retail, strata & health care buildings.

enLink

If you're looking for a more advanced Emergency lighting system, explore enlink, our monitored emergency lighting system.

Product Downloads

Click the below links to download guides, datasheets and more.

Secure Zone Documents

Login to view the latest IES files, spacing guides, installation guides and frequently asked questions.

Login
safety compliance 1 Wall Mount 1 Ceiling Mount 1 easy 1 5 Year Warranty 1 1P20 1 liFeP04 1 self test 1 Core Range (1)
Highlights

Key Features

  • Slide’n’Connect quick fit bracket for easy installation
  • Single or Double Diffuser with a selection of directional decals included
  • Max. viewing distance: 24m
  • Emergency Classification: D3.2
  • Expected LED life > 110,000hrs @L70
  • Emergency duration >180 minutes
  • IP20 - Ingress protection
  • Commissioning Self-Test: Automatic commissioning test 16 hours after install
  • Duration Self-Test: Automatic duration testing every 3 months
  • Long life LiFePO4 battery
  • 5 year warranty (2 years for battery)

Applications

Corridors Univesities & school campuses Large retail Office areas Hospitals
Technical Info

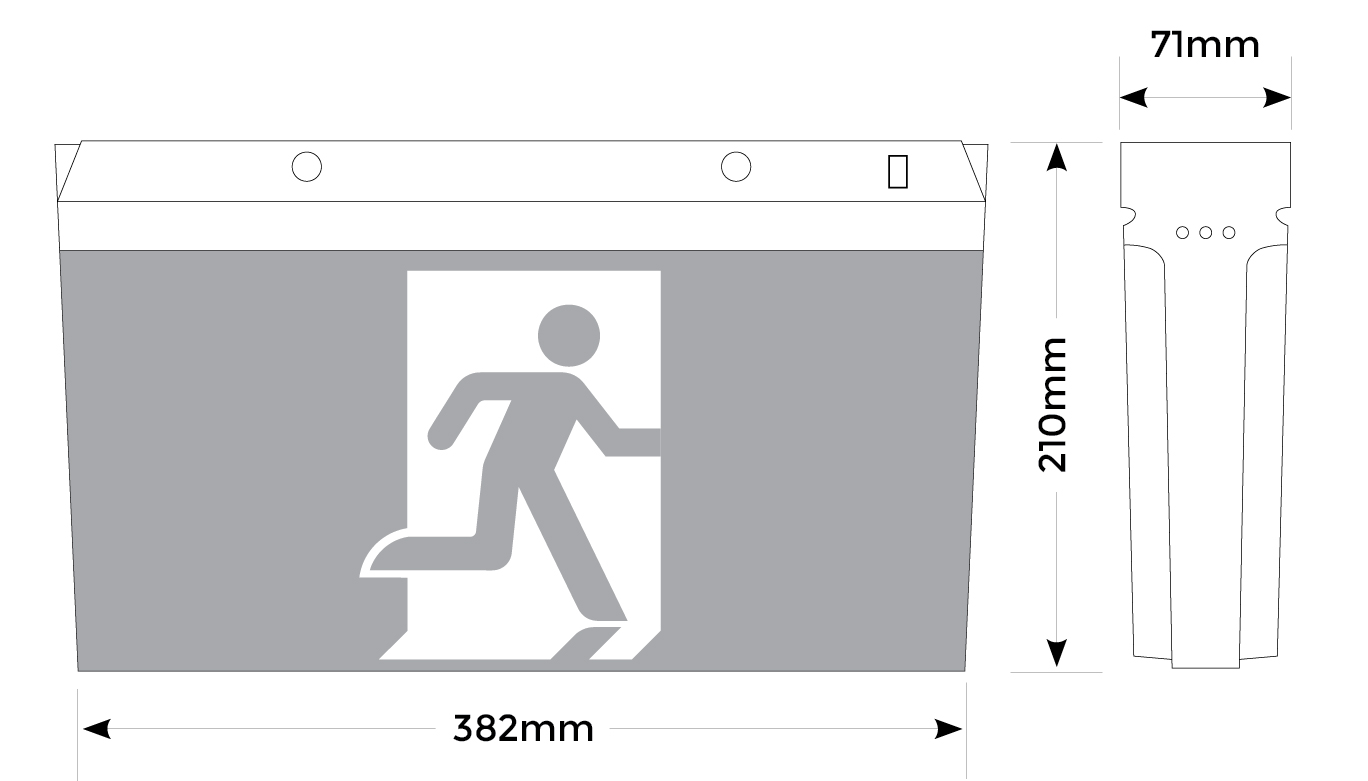

  MODEL   DIMENSIONS (mm) RATED POWER (W) WEIGHT (kg)
  MIRA-EXIT-SC   382 x 71 x 210  2  1.5
 OPTICAL
  Light source Osram LEDs
  Mode of operation   Maintained
  Emergency Duration    >180 minutes
 ELECTRICAL
 Power consumption (W)   4.5W Charging Mode | 2W Standby Mode
 Operating voltage & frequency  220 - 240V AC, 50 Hz
 Charger BMS controlled constant voltage charging
 Battery type   LiFePO4
 Battery rating
   4.8Wh, 3.2V 15000mAh, LiFePO4
Protection Overcharge, low voltage disconnect, overcurrent, short circuit




ENVIRONMENTAL
 IP rating   IP20
 Weight    1.5kg
 Ambient temp. range    0°C to +40°C
Material Composition (body) Flame retardant ABS body, powder coated metal bracket, PS diffuser

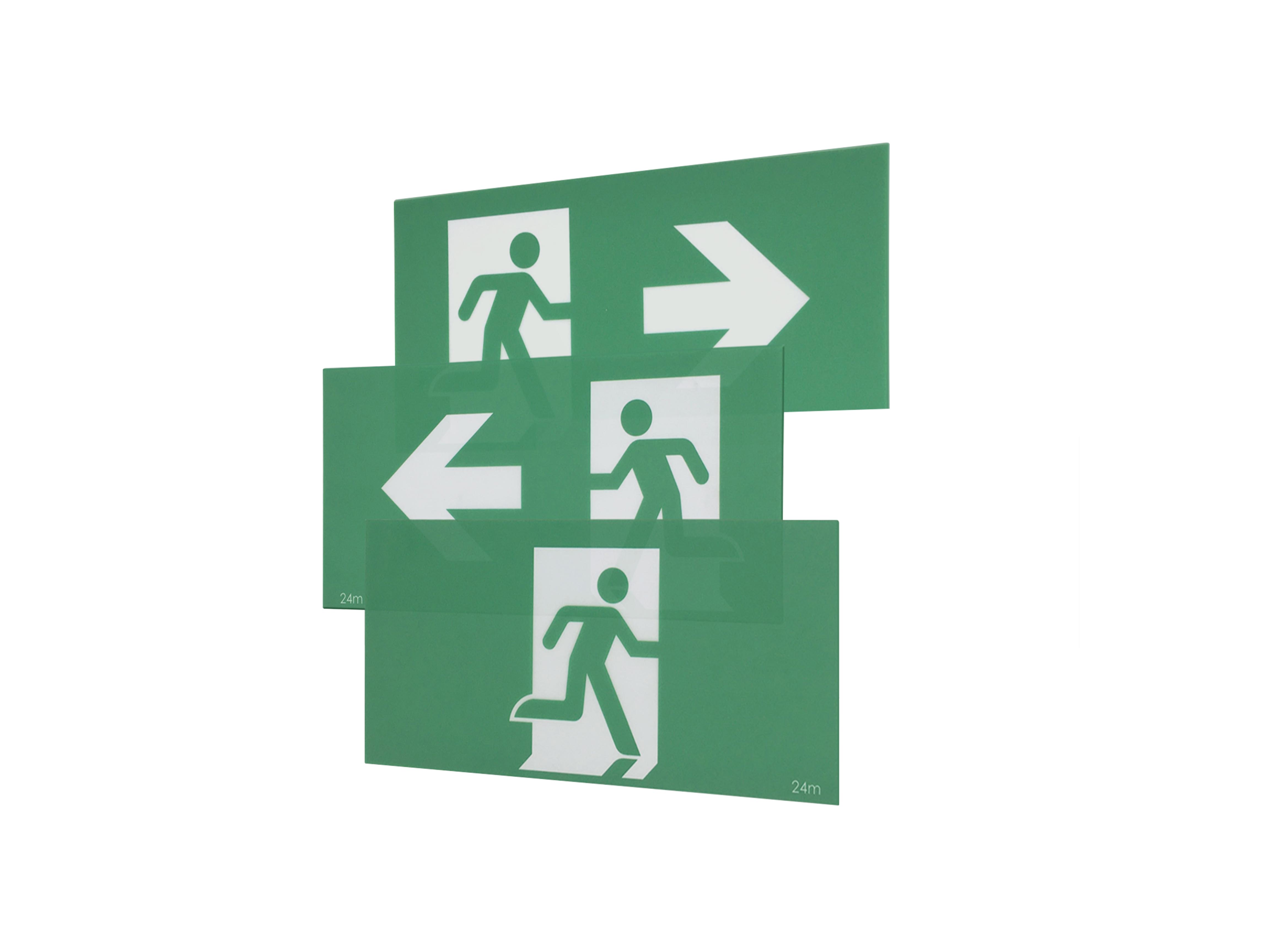

 Decals
 Arrow Left, Arrow Right, Running Man
CONTROLS
 Testing facility                           Manual test switch
 Indicators    Battery charger green LED
COMPLIANCE
 AS/NZS 2293                           D3.2; 24m max. viewing distance
