Skyline Panel B Skyline Panel A

Skyline LED panel and air return options

Backlit design with significantly improved efficacy

Product enquiry

Overview

The Skyline is a low-glare, backlit LED office panel, delivering a high-quality lighting solution for office and school environments. Designed with a microprismatic diffuser, it ensures even light distribution and eliminates glare for maximum occupant comfort.

With superior efficacy, the Skyline is ideal for retrofit projects where government incentives apply. Professionally finished with a seamless, screwless frame, it offers an elegant, perfectly flat appearance. Suitable for recessed or surface-mounted applications.





Product Downloads

Click the below links to download guides, datasheets and more.

Secure Zone Documents

Login to view the latest IES files, spacing guides, installation guides and frequently asked questions.

Login
Ceiling Recessed 1 flicker free 1 low glare 1 safety compliance 1 5 Year Warranty 1 Core Range (1)

Optional Features

Recessed plater kit Surface Mount Suspension Mount Dali Casambi Tunable White
Highlights

Key Features

  • Easy installation with 1.5m flex & plug
  • Low glare, UGR<19 design to maximise comfort
  • Flicker free driver performance to reduce eye strain
  • High luminaire efficacy of up to 170lm/W
  • IP54 - front side for extra protection
  • Seamless frame for enhanced appearance & rigidity
  • Suitable for standard ceiling grid sizes
  • Mounting options available - Recessed & surface mounted kits
  • Control Options - DALI-2 and Casambi
  • Tunable white option
  • Lower power - 15W for single tube fluro replacements
  • Customised frames for air return available
Regents Park

Applications

Classrooms Government buildings Large retail Libraries Meeting rooms Office areas Univesities & school campuses
Technical Info
SKYLINE MODEL   CRI   RATED POWER(W)   LUMEN
 OUTPUT(lm) 		  DIMENSIONS(mm)

 WEIGHT(kg)
 SKY2-6030-15-8yy    80   15W   2200lm  595 x 295   1.0

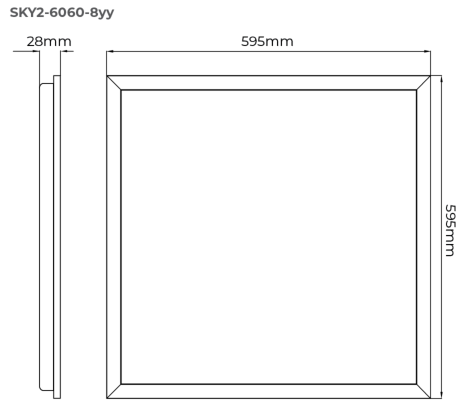

 SKY2-6060-15-8yy   80   15W   2470lm  595 x 595   1.9

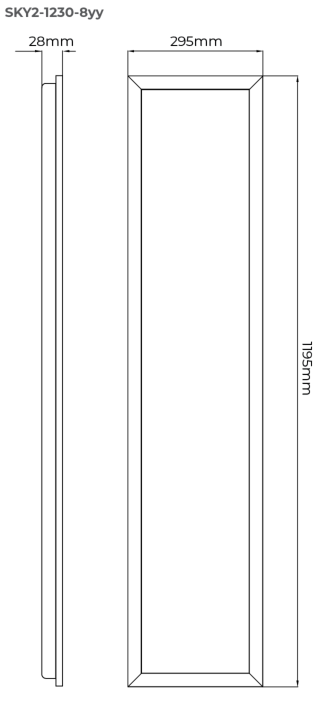

 SKY2-1230-15-8yy   80   15W   2470lm  1195 x 295   2.0
 SKY2-6060-19-8yy   80   19W   3170lm  595 x 595   1.9
 SKY2-1230-19-8yy   80   19W   3170lm  1195 x 295   1.9

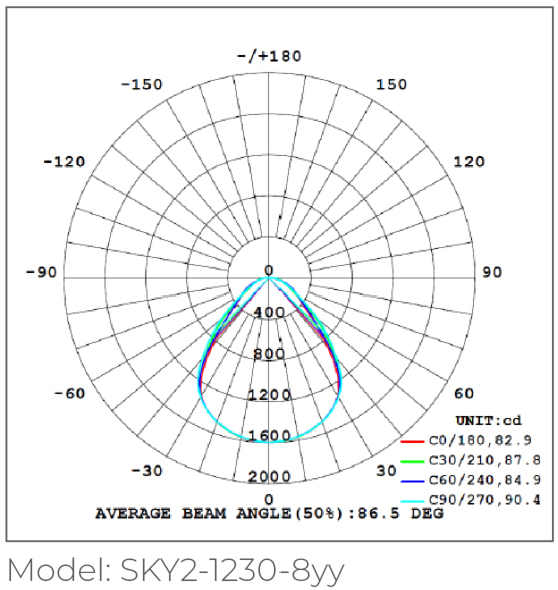

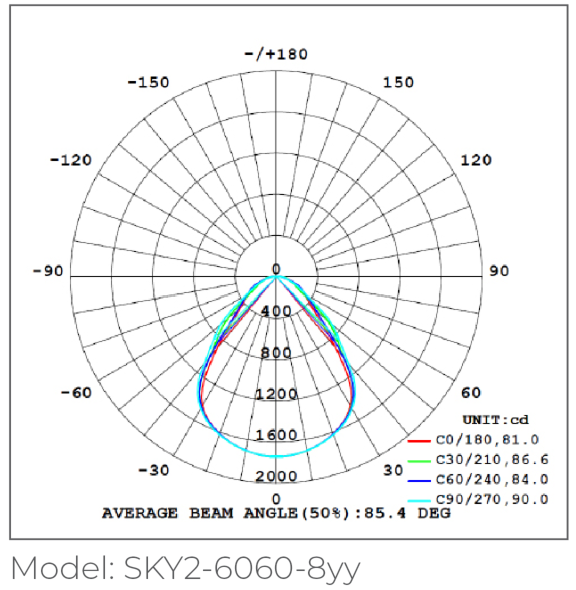

 OPTICAL
  Lumen output   2000-3170 lumens
  CRI   Ra> 80
  CCT   4000K & 5000K standard, 3000K & 6000K optional
  Luminaire efficacy   Up to 125 lm/W
  Glare rating (UGR)    UGR < 19
  ELECTRICAL
  Power consumption (W)    15W - 19W
  Operating frequency   50Hz
  Operating voltage range   220 - 240V AC
  Power factor   >0.95 / 240 V AC
  ENVIRONMENTAL
  IP rating   IP40
  Weight   1.0 - 2.0kg
  Ambient temperature range     -20°C to 40°C
  Material Composition (body)    White powder-coated aluminium
  Material Composition (diffuser)    PMMA LGP
  Expected Lifespan   >120,000 hours @ 70% lumen maintenance
  CONTROLS
  Dimming   DALI/DSI, 1 - 10V
Product Review

Martyn Orford, Platinum Electricians

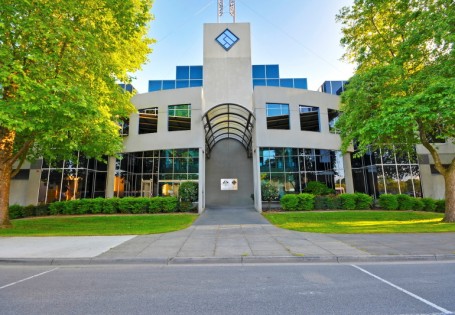

ASIC building, 14-20 Grey St, Traralgon

‘We have had really good feedback from the workforce in the ASIC building, they told us, it is easier to see the detailed information on their screens and that the new Skyline panels have improved how they feel about their working environment. We were really happy seeing such positive feedback so soon after the installation.

This has been a fantastic project for us to be involved in, enLighten products were easy to install and provided a fantastic outcome for our client.'

Brad Wyber, Trackie Industries

Asurion Australia

Asurion Australia is a workshop facility based in Sydney’s South West that specialises in mobile phone repairs.

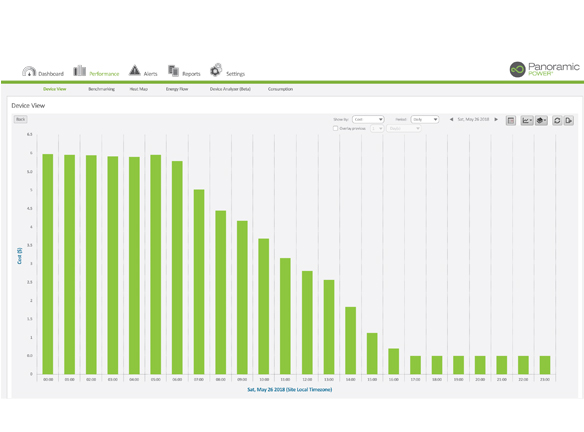

After monitoring and benchmarking the energy usage, it was confirmed that prior to the upgrade, it was costing Asurion $6p/h to run the lights 24/7, following the upgrade, it now costs  50c p/h during work hours.

Also the Skyline produced approximately 42 per cent more light than the existing lights, which allowed them to remove all the desk lamps.

Lighting Council Australia

Increase well-being and increase productivity

‘A well-designed LED lighting system can improve concentration, health, well-being and productivity levels while lowering stress and creating a better  mood.'

Skyline : Introducing a new Backlit design

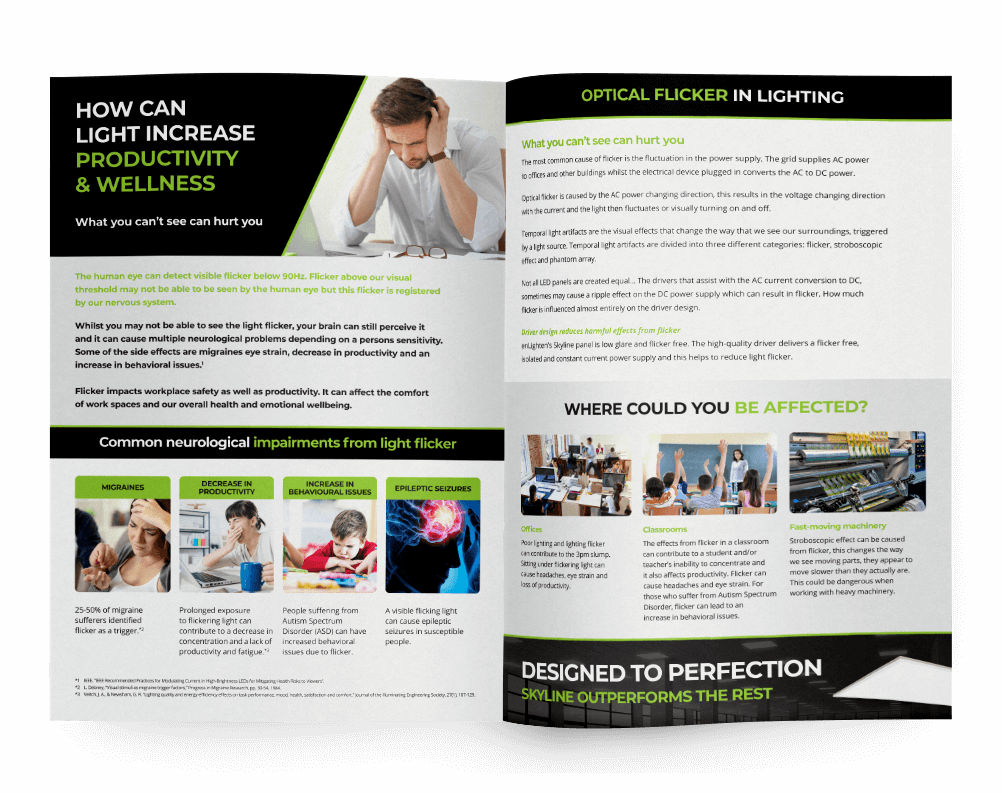

Download our guide to improve office lighting
 Download Guide
