Zorro 135W Vertical Mount Zorro V15 Mount Zorro Heat Sink Zorro H10 Mount Zorro H0 Mount

Zorro

ROBUST AND RELIABLE Street/area/food light

Product enquiry

Overview

The Zorro area light offers superior performance and reliability. It is a high efficacy exterior car park and external walkway lighting solution. This light has an integrated PE cell option which allows the fitting to automatically switch on at dusk and off at dawn. This versatile light comes in a wide range of power and lens options to suit your application.

Product Downloads

Click the below links to download guides, datasheets and more.

Secure Zone Documents

Login to view the latest IES files, spacing guides, installation guides and frequently asked questions.

Login
easy 1 horizontal mount 1 IK10 Rating 1 IP66 1 Vertical Mount 1 5 Year Warranty 1 Core Range (1)

Optional Features

Casambi PE Cell 12/24v DC Battery
Highlights

Key Features

  • Sleek low profile design available in silver or black
  • Modular design offering a broad range of lumen outputs and light distribution
  • High performance Lumileds LUXEON TX LEDs
  • Breather gaps between modules increase heat transfer to maximise LED performance
  • Easy fit universal mountings and connectors – ability to fit square and round poles
  • Adjustable spigot offers horizontal and vertical installation
  • Integrated PE option available to switch off during the daylight hours
  • Optional low voltage DC drivers for solar/battery powered interface
  • IPART approved
Zorro Outdoor Carpark Zorro Pole Mount Zorro Perimeter Lighting

Applications

Bike paths Council parks Industrial estate Outdoor car parks Univesities & school campuses
Technical Info
  MODEL   DIMENSIONS (mm)   LUMEN
  OUTPUT (Lm)
Rated Power (W)
  LD35H-4000-TX-YYY    431 x 316 x136  4600  35
  LD65H-4000-TX-YYY   504 x 316 x 136  8600  65
  LD100H-4000-TX-YYY    577 x 316 x 136  13,300  100
  LD135H-4000-TX-YYY   650 x 316 x 136  17,900  135
  LD165H-4000-TX-YYY   723 x 316 x 136  21,900  165
  LD200H-4000-TX-YYY   796 x 316 x 136  26,600  200
  LD230H-4000-TX-YYY     869  x 316 x136  30,500  230



OPTICAL
  Light source   Lumileds LEDs
  Lumen output   4,494 - 31,488 lm
  CCT   4000K standard;
  3000K, 5000K & 5700K optional
  Luminaire efficacy   up to 130 lm/W
  Lens Angle   TI, TII, TIII, TV
ELECTRICAL
 Power consumption (W)   35, 65, 100, 135, 165, 200, 230
 Operating frequency   50/60 Hz
 Operating voltage range    100 - 240V AC
 Power factor   >0.9/240V AC at full load
 Maximum current   0.18A, 0.33A, 0.51A, 0.69A, 0.85A, 1.03A, 1.18A/240V
 Driver type
   MEANWELL
 Driver efficiency
  >90%
ENVIRONMENTAL
 IP rating   IP66
 Impact rating   IK10
 Weight    5.3 - 10.8kg
 Ambient temperature range    -40°C to +50°C
 Material composition (body)   Die-cast aluminium
 Material composition (heat sink)
   Anodized aluminium
 Expected lifespan
   >140,000 hours @ L70
CONTROLS - OPTIONAL    Photo electric (PE) cell
 24V DC driver
Product Review

Andrew Caswell, Nutbrook Engineering Group

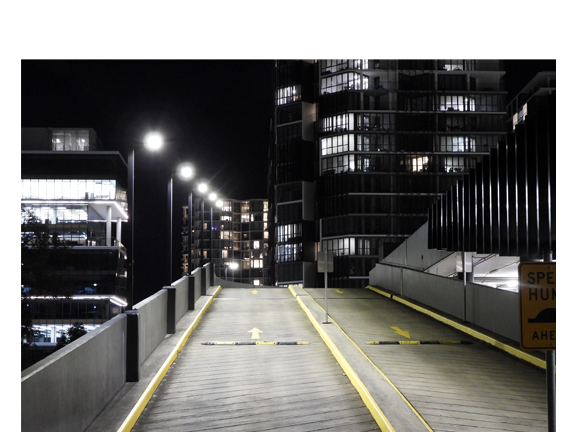

Macquarie Centre car park
Installed on this site were:
Zorro area light and the Noctua non-glare floodlights and Vico battens

‘Providing quality, uniform light in the car park has helped to transform the Macquarie Centre shopping experience. Choosing enLighten’s luminaires for the multi-level car park and loading docks has helped us meet and exceed our design criteria.

I was very impressed by the energy saving... according to the dataloggers installed onsite we are experiencing a 73% reduction...the savings will certainly benefit the centre for years to come.’

Asher Christophers, Director at Austep Lighting

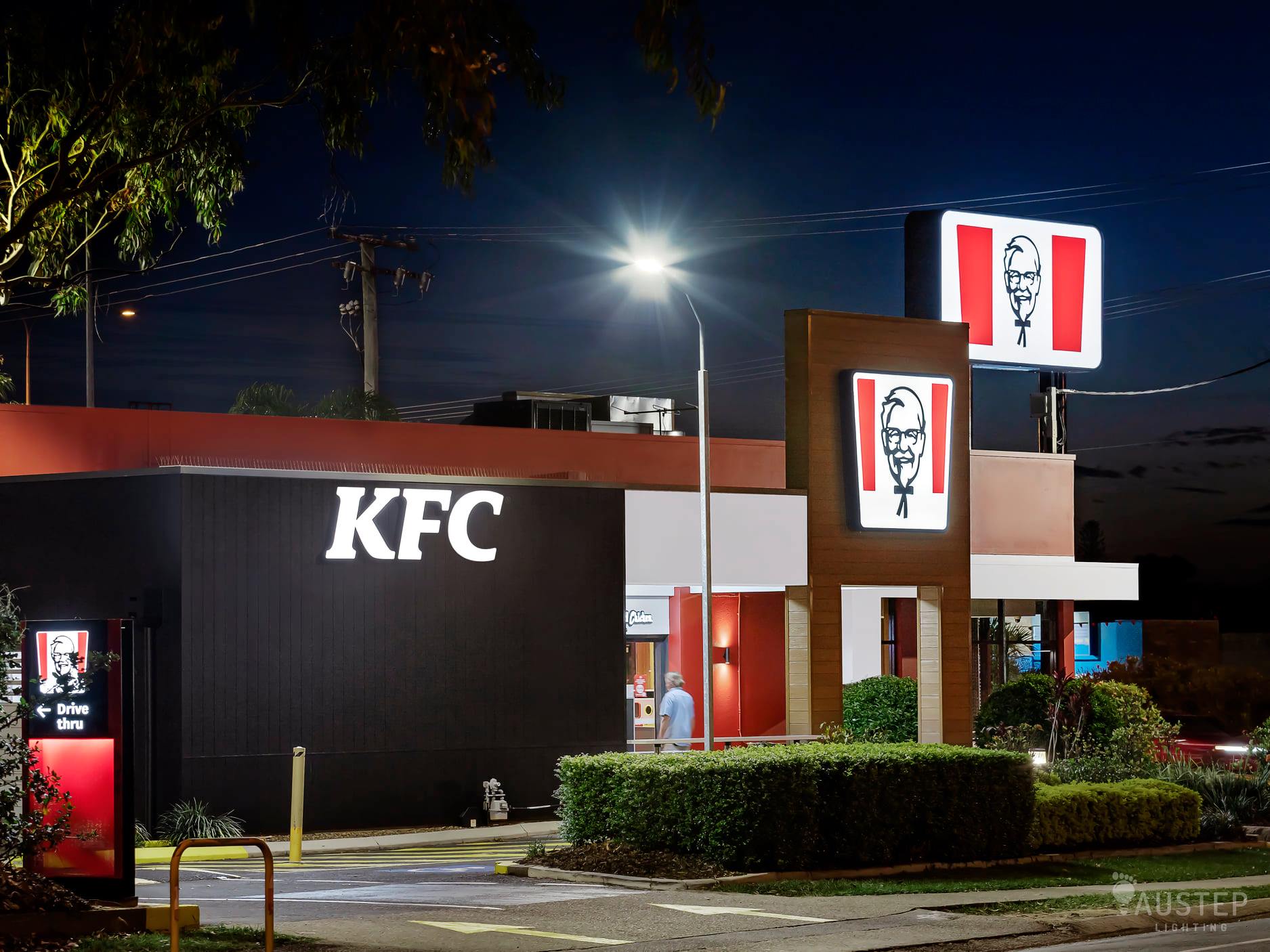

Outdoor lighting upgrade for KFC stores in NSW
‘I wouldn’t choose anything but the Zorro, the longevity and efficiency of the fittings have really helped to deliver on energy savings and sustainability initiatives for our client.

The low-glare optics mean the KFC stores are looking great and we are very pleased with the result.’

Matthew Young, General Manager Tourism, Ingenia Communities

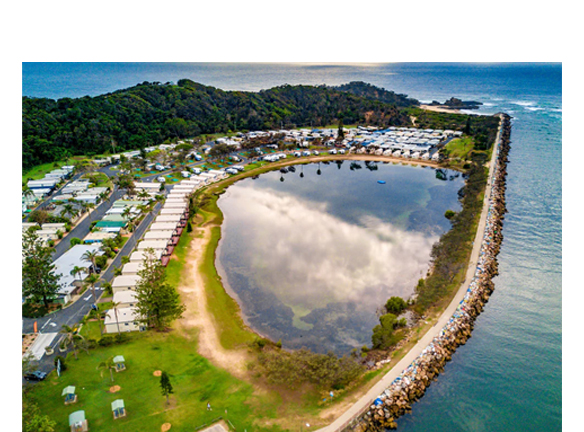

Ingenia White Albatros, Nambucca Heads
32 x Zorro: Area light
75 Vico: BBQ/recreation and amenity light

Ingenia South West Rocks
17 x Zorro: Area lights
60 x Vico: BBQ/recreation and amenity light
2 x Noctua: Floodlights

‘The recent LED lighting upgrades undertaken across Ingenia Holidays parks in QLD and NSW will not only help the Group reduce carbon emissions but also make the parks safer and more inviting for our guests.’
