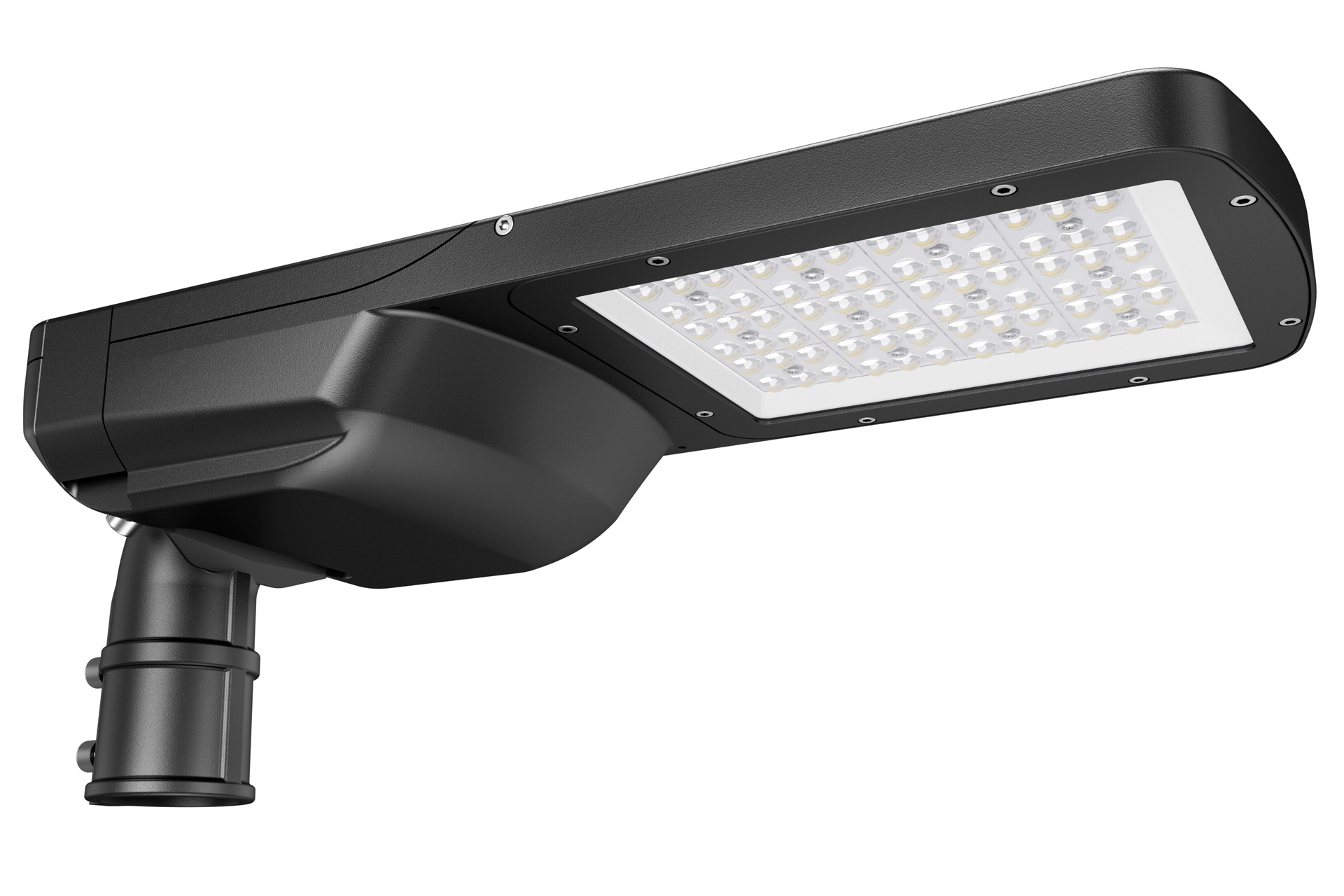

Hero Light Imagezorro2

Zorro 2

RELIABLE, EFFICIENT AREA LIGHT

Product enquiry

Overview

The Zorro 2 is a robust and reliable pathway and area light.  It features superior optical performance with >150 lumens per watt. This versatile area light offers a wide range of power 15W to 200W and multiple lens options available.

This luminaire has an integrated PE cell option which allows the fitting to automatically switch on at dusk and off at dawn.

Get total lighting control with optional Casambi wireless control technology. It is easy to commission, flexible, scalable, and intelligent — giving you smart control over your area lighting system.

Built for reliability, the Zorro 2 area light offers long-lasting performance even in harsh outdoor environments.



Product Downloads

Click the below links to download guides, datasheets and more.

Secure Zone Documents

Login to view the latest IES files, spacing guides, installation guides and frequently asked questions.

Login
easy 1 horizontal mount 1 IK10 Rating 1 IP66 1 Vertical Mount 1 5 Year Warranty 1 Core Range (1)

Optional Features

Casambi Dali PE Cell Smart controls
Highlights

Key Features

  • Wide range of power and lens options
  • Easy to install and maintain -  Toolless clipping system
  • High efficacy >150 lm/W using Lumileds LED
  • Smart controls optionals: PE Sensor and Casambi wireless control technology
  • Inbuilt 10kV surge protection
  • High ingress protection IP66
  • High impact rating IK10
  • Available in black and optional in silver
  • VEU approved
  • IPART approved

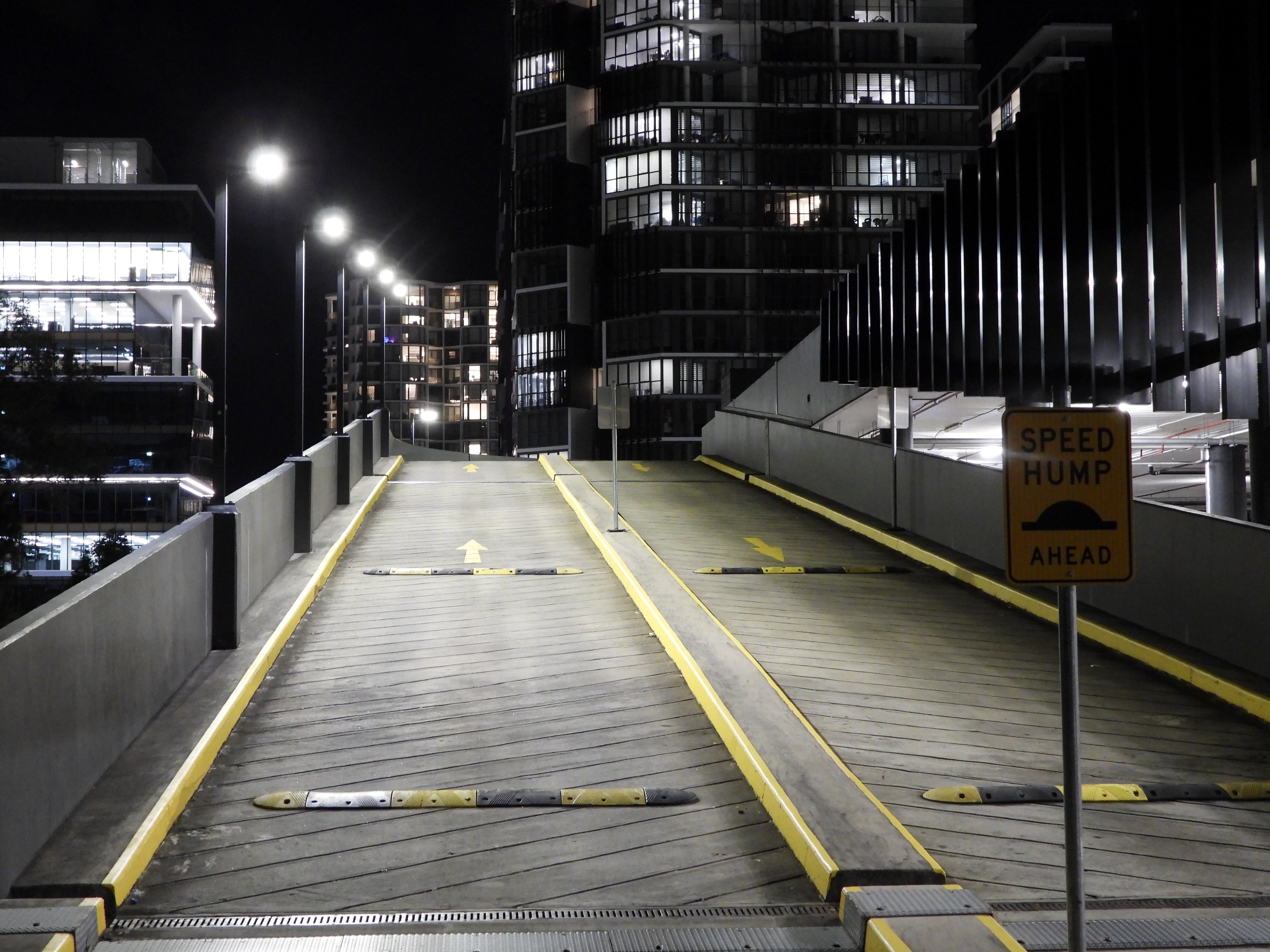

DSCN3259

Applications

Bike paths Council parks Industrial estate Outdoor car parks Univesities & school campuses
Technical Info



 Zorro 2 MODELS  DIMENSIONS (mm)  LUMEN
OUTPUT (Lm)
RATED POWER (W) WEIGHT (kg)
  ZAL15S-Tx-4K-B     610 x 190 x 143  2,400  15  4.7
  ZAL40S-Tx-4K-B   610 x 190 x 143  6,400  40  4.7
  ZAL60S-Tx-4K-B   610 x 190 x 143  8,900  60  4.7
  ZAL80M-Tx-4K-B   660 x 240 x 143 12,800  80  5.8
  ZAL120M-Tx-4K-B     660 x 240 x 143 18,600  120  5.8
  ZAL150L-Tx-4K-B   762 x 290 x 143  23,900  150  8.1
  ZAL200L-Tx-4K-B     762 x 290 x 143  29,900  200

 8.1



 OPTICAL
  Light source   Lumileds LEDs
  Lumen output   2,400 - 29,900 lm
  CRI   Ra>70, Ra>80
  CCT   4000K standard;
  3000K, 5000K & 5700K optional
  Luminaire efficacy   > 150 lm/W

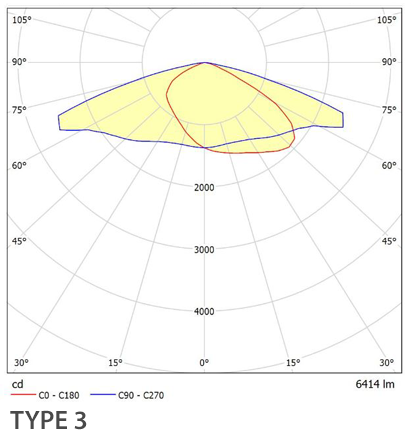

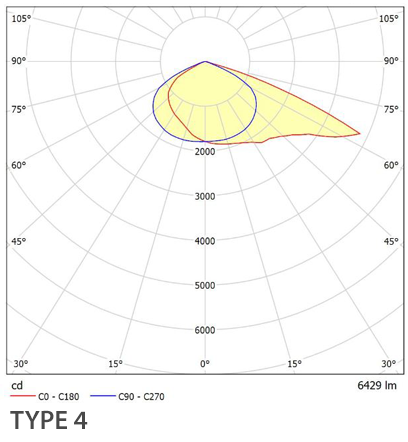

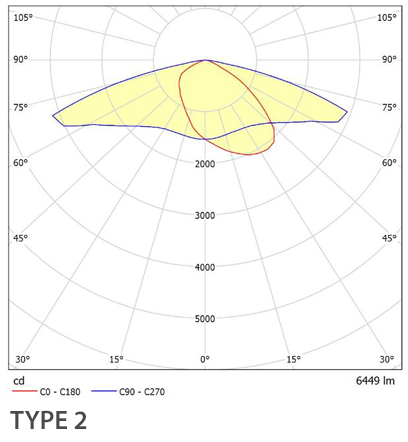

  Lens type   T2, T3, T4
 ELECTRICAL
 Power consumption (W)   15, 40, 60, 80, 120, 150, 200
 Operating frequency   50/60 Hz
 Operating voltage range    100 - 240V AC
 Power factor   >0.9/240V AC at full load
 Driver type
   Inventronics
 Driver efficiency
  >90%



ENVIRONMENTAL
 IP rating   IP66
 Impact rating   IK10
 Weight    4.7 - 8.1kg
 Ambient temperature range    -40°C to +50°C
 Material composition (body)   Powder coated die-cast aluminium
 Glass cover
   Tempered glass
 Expected lifespan
   >110,000 hours @ L70
CONTROLS - OPTIONAL   Photo electric (PE) cell
Casambi wireless control
1-10V Dimming

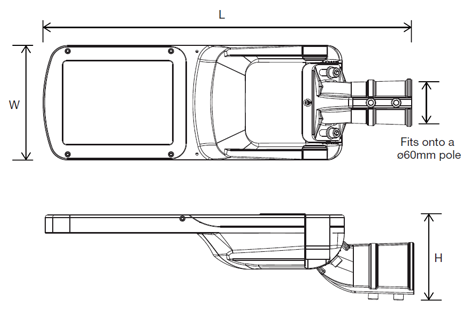

Dimensions
  MODEL  DIMENSIONS (mm)
  ZAL15S-Tx-4K-B     610 x 190 x 143
  ZAL40S-Tx-4K-B   610 x 190 x 143
  ZAL60S-Tx-4K-B   610 x 190 x 143
  ZAL80M-Tx-4K-B   660 x 240 x 143
  ZAL120M-Tx-4K-B     660 x 240 x 143
  ZAL150L-Tx-4K-B   762 x 290 x 143
  ZAL200L-Tx-4K-B     762 x 290 x 143
