Noctua

Directional flood light with superior illumination

Overview

NEW DIRECTIONAL FLOOD LIGHT
The Noctua is a high quality commercial LED flood light that has been designed to maximise area illumination and light uniformity.

Designed with an asymmetrical forward throwing lens, the Noctua provides 30% better illumination uniformity and saves up to 40W when compared against common LED flood lights. The lensed optics are engineered to achieve significant glare reduction giving you light where you need it.

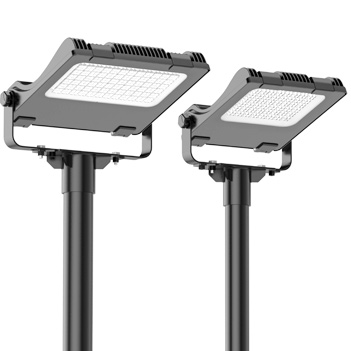

It is a robust and reliable product with high ingress protection and it has been IPART approved. With versatile mounting options the Noctua can easily be wall or ground mounted using the mounting bracket or can be pole mounted, using the optional pole mounting adaptor.

The Noctua flood light can be fitted with a DALI compliant driver that easily connects to an existing lighting control system.

BENEFITS OF A FORWARD THROWING LEN

Product Downloads

Click the below links to download guides, datasheets and more.

Noctua Datasheet (1141.4KB)
Noctua Installation Instructions (983.8KB)

Secure Zone Documents

Highlights

Key Features

Low glare, directional flood light with superior illumination
Achieve 30% better illumination uniformity using an asymmetrical forward throwing len
Versatile mounting options suitable for pole, wall or ground mounting
Easy install using mount brackets or adaptors
Dimming options include 1-10V, PWM and DALI
Corrosion resistant powder coated body
IP66, high ingress protection for dust and withstands significant water pressure
IK08 impact resistance
Respirator valve achieves zero steam build up internally

Applications

Technical Info

MODEL	DIMENSIONS (mm)	LUMEN OUTPUT (Lm)	Rated Power (W)
NFL40-40K-FTL	308 x 82.9 x 359.3	5,740	40
NFL60-40K-FTL	308 x 82.9 x 359.3	8,440	60
NFL80-40K-FTL	308 x 82.9 x 359.3	10,790	80
NFL100-40K-FTL	366 x 82.9 x 413.2	13,970	100
NFL120-40K-FTL	366 x 82.9 x 413.2	16,240	120
NFL150-40K-FTL	366 x 82.9 x 413.2	20,240	150
NFL180-40K-FTL	462 x 87.9 x 452.3	24,390	180
NFL200-40K-FTL	462 x 87.9 x 452.3	26,430	200
NFL240-40K-FTL	462 x 87.9 x 452.3	31,670	240

OPTICAL
Light Source	Nichia LEDs
Lumen output	5,740 – 31,670 lumens
CRI	Ra>70
CCT	4000K standard; 3000K & 5000K optional
Luminaire efficacy	Up to 139 lm/W
Beam angle	Asymmetric forward throw

ELECTRICAL
Power Consumption	40W - 240W
Operating frequency	50Hz
Operating voltage range	220-240V AC
Power factor	>0.90/240V AC
Driver	Sosen, DALI compliant driver (optional)
Dimming controls (optional)	1-10V, PMW, DALI dimming

ENVIRONMENTAL
IP rating	IP66
Impact rating	IK08
Weight	4.3 - 8.9 kg
Ambient temperature rating	-30°C to +50°C
Material Composition (body)	Aluminum Alloy
Material Composition (diffuser)	Polycarbonate lens and tempered glass
Expected lifespan	>130,000 hours at L70
