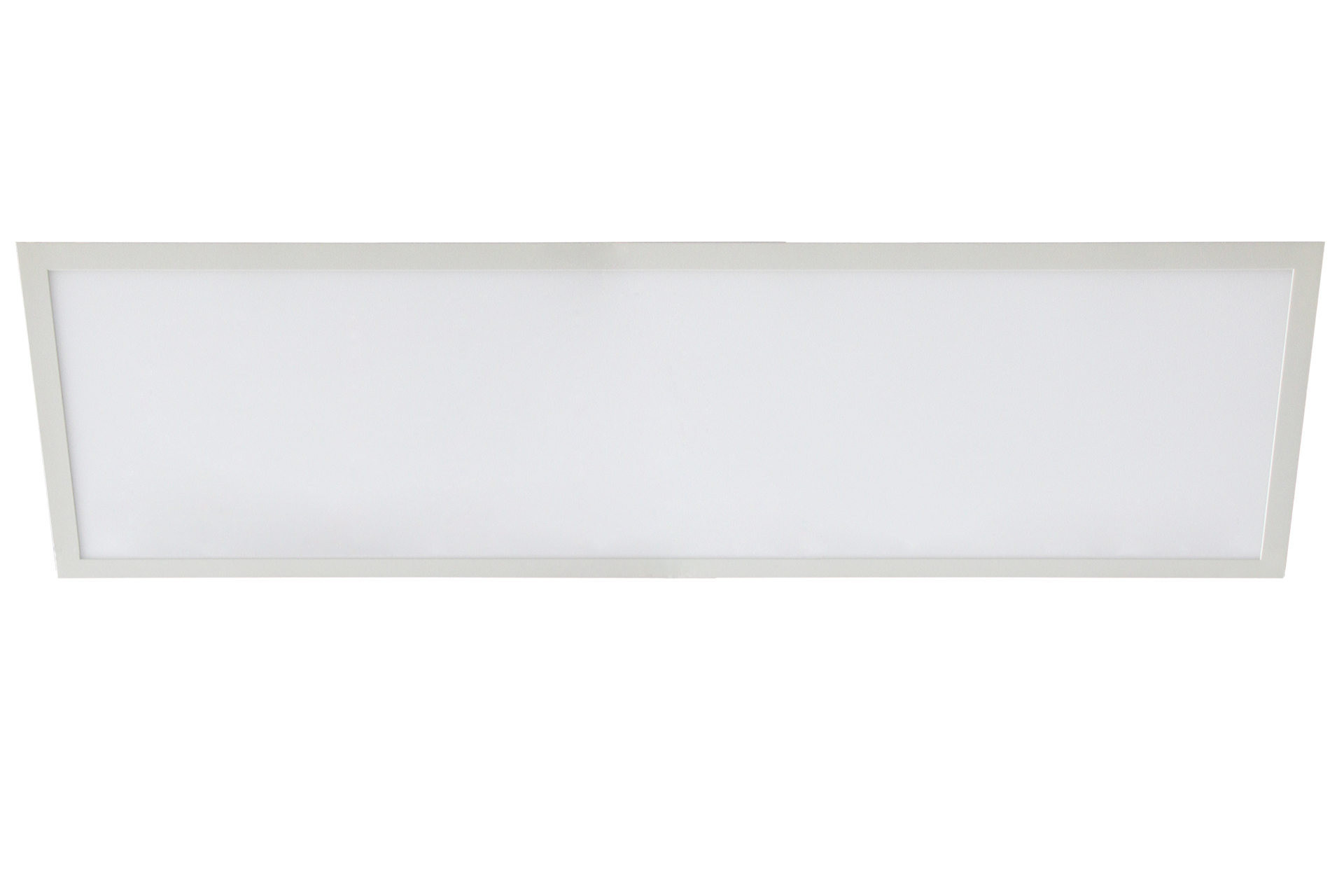

Skyline LED panel

Double edge lit, low glare edge lit panel

Overview

The Skyline panel is a double edge lit, low glare LED panel that provides an energy efficient retrofit solution to conventional fluorescent luminaires.

The Skyline offers superior performance with the LED panels incorporating a unique light guide plate design, using a high quality PMMA. The prismatic diffuser distributes the light evenly and eliminates glare.

This slimline LED panel is professionally finished with a seemless frame and is suitable for the office or school environment. Designed for recessed, surface mounted or suspended applications.

The Skyline panel is very versatile, it can be fitted with a DALI-2/DSI compliant driver that easily connects to an existing lighting control system.

Product Downloads

Click the below links to download guides, datasheets and more.

Enlighten Skyline LED Panel Installation Instructions (861.2KB)
Enlighten Skyline Datasheet (693.8KB)
Designing Quality Learning Spaces (693.3KB)

Secure Zone Documents

Highlights

Key Features

Double edge lit, low glare, UGR<19 and flicker free to maximise comfort
Extra long LED lifespan >120,000 hours
Enhanced visual comfort via highly transmissive light guide plate
Slim profile creates elegant look for surface mount & suspended installations
Extruded aluminium housing provides effective heat sinking
High colour rendering of CRI: Ra > 80
High luminaire efficacy of up to 125 lm/W
4000K & 5000K CCT standard with 3000K & 6000K optional
Easy to install with 1.5m flex & plug
Mounting options available - Recessed, hanging and surface mounted kits
Suitable for standard ceiling grid sizes
Optional DALI/DSI or 1-10V drivers for dimming

Applications

Technical Info

MODEL	RATED POWER(W)	LUMEN OUTPUT(lm)	DIMENSIONS(mm)	WEIGHT(kg)
SKY26-1230	26W	3250lm	1195 x 295	3.7
SKY26-6060	26W	3250lm	595 x 595	3.5
SKY20-6030	20W	2000lm	595 x 295	1.9

OPTICAL
Lumen output	2000-3250 lumens
CRI	Ra> 80
CCT	4000K & 5000K standard, 3000K & 6000K optional
Luminaire efficacy	Up to 125 lm/W
Glare rating (UGR)	UGR < 19

ELECTRICAL
Power consumption (W)	20W - 26W
Operating frequency	50Hz
Operating voltage range	220 - 240V AC
Power factor	>0.95 / 240 V AC

ENVIRONMENTAL
IP rating	IP40
Weight	1.9 - 3.7kg
Ambient temperature range	-20°C to 40°C
Material Composition (body)	White powder-coated aluminium
Material Composition (diffuser)	PMMA LGP
Expected Lifespan	>120,000 hours @ 70% lumen maintenance
