Tauro Black

High efficacy high bay 165 lm/w

With customised aisle racking optics

Overview

UP TO 40% MORE EFFICIENT THAN STANDARD LED HIGH BAYS

The Tauro Black high bay is the next evolution in LED high bays, with results of up to 40% more efficiency when compared to other LED high bays. Minimise your energy consumption and maximise your energy savings by eliminating waste light and hot spots through the use of custom optics and industry leading efficacy of up to 165 lm/w.

Customised aisle racking optics are transforming the warehouse environment. Vertical illumination improves pick accuracy and productivity by making it easier to read labels and retrieve stock. Achieve uniform horizontal lighting throughout the facility and create a safer workplace.

Heatmap

Product Downloads

Click the below links to download guides, datasheets and more.

Enlighten Tauro Black Linear High+Bay Installation Instructions (578.7KB)
Enlighten Tauro Black (1040.7KB)
Tauro Black Remote Control User Manual (615.1KB)

Secure Zone Documents

Highlights

Key Features

Up to 40% more efficient when compared to standard LED highbays
Industry leading efficacy of up to 165 lm/w using Nichia LEDs.
Variety of optics available, symmetric and asymmetric
Wide range of sizes 30W-240W for low to high ceilings.
Optional smart controls with microwave motion sensor and daylight harvesting sensor
DALI & 1-10V dimming optional
Durable and robust with IP65 & IK10
5 year product warranty
Hanging kits are included for easy mounting.

Applications

Technical Info

OPTICAL
Light Source	Nichia LEDs
Lumen output	4500 – 38,550 lumens
CRI	Ra>70 standard, Ra>80 optional
CCT	5000K standard, 4000K optional
Luminaire efficacy	151-165 lm/W

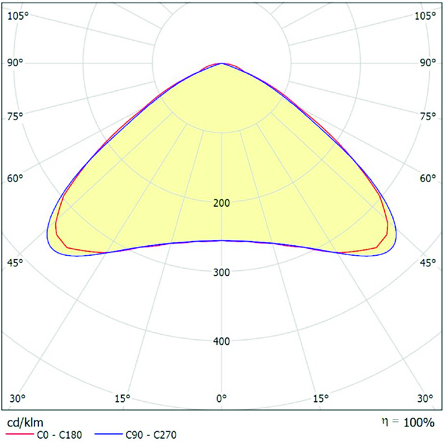

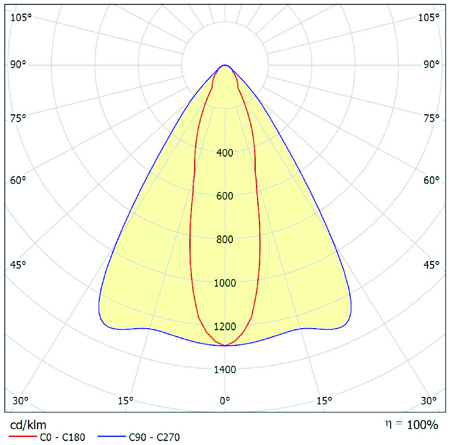

Beam angle	Symmetrical & asymmetrical racking

ELECTRICAL
Power Consumption	30 - 240W
Operating frequency	50 Hz
Operating voltage range	220 - 240V AC
Power Factor	>0.9/240V AC
Driver	Sosen

ENVIRONMENTAL
IP rating	IP65
Impact rating	IK10
Net Weight	1.9, 3.4, 4.7, 5.7, 6.9, 8.5, 10.3 kg (+/- 0.3kg)
Ambient temperature rating	-30°C to +50°C
Material Composition (body)	Aluminum Alloy
Material Composition (lens)	Polycarbonate
Expected Lifespan	>130,000 hours at L70

SMART CONTROL SENSOR
The Tauro Black highbay has a smart control sensors for daylight harvesting and motion detection. The highbay sensor is an LED lighting control device that can detect motion and ambient light when mounted up to a maximum height of 12m. Gain up to 40% increase in energy savings using sensors.

Design features:

Wide detection range of up to 16m diameter
2 & 3 Step dimming offers full, standby & off modes
Daylight harvesting function can adjust light output depending on the amount of natural light available.
Maximum mounting height of 12m suitable for warehouse use
Setting are adjustable via a remote control commissioning tool.

Operating modes of the high bay sensor:

Motion detection and daylight harvesting
Motion detection only (no daylight harvesting)
Daylight harvesting only (no motion detection)

The smart control sensor can achieve up to 3-step dimming functions between high light output (100%), stand-by dimming (10-50%) and off. An integrated photo electric (PE) cell detects ambient light levels and will adjust the light output according to preset lux thresholds.

The intelligent lux level auto-commissioning function calibrates the target lux level automatically which simplifies the commissioning process.

Download the operating instructions

Dimensions

MODEL	LUMEN OUTPUT (lm)	POWER RATED (W)	SIZE LxWxH (mm)	WEIGHT (kg)
TB 30	4,500	30	280 x 137 x 102	1.9
TB 60	9,300	60	486 x 137 x 102	3.4
TB 90	14,100	90	718 x 137 x 102	4.7
TB120	18,700	120	948 x 137 x 102	5.7
TB 150	23,000	150	1178 x 137 x 102	6.9
TB 180	27,700	180	718 x 275 x 102	8.5
TB 240	37,100	240	950 x 299 x 102	10.3
