Vico LED Linear Batten

Improved efficacy, Eco Dim switch & LiFeP04 battery

Overview

enLighten's Vico weatherproof IP65 LED batten offers a simple T8 or T5 fluorescent batten replacement. Vico is an intelligent LED lighting solution for long lit low occupancy spaces, the Vico is available in 600mm (16W), 1200mm (30W) & 1500mm (42w) models.

The next generation of the Vico batten has been released...with improved efficacy of up to 142 Lm/W, a NEW Eco Dim switch to half power mode and an LiFeP04 battery.

The Vico is available in emergency and standard, it is ideal for corridors, fire stairs, store rooms, plant rooms and undercover car parks.

The Vico batten can be fitted with a DALI-2 compliant driver that easily connects to an existing lighting control system. DALI is not available in emergency models.

Download how to make your car park entrance compliant to AS1680

Product Downloads

Click the below links to download guides, datasheets and more.

Enlighten Vico LED Batten Bl06xx Bl12xx Bl15xx Installation Instruction 20190628 (1267.3KB)
Enlighten Vico And Energy Saving (940.8KB)

Secure Zone Documents

Highlights

Key Features

Option of microwave motion sensor with standby light operating at 20% brightness for both standard & emergency versions
High colour rendering index (CRI) of over 80
Microwave motion sensor range up to 8m
Flexibility to set motion sensor timer for full light output to either 10, 30 or 90 seconds or 3 minutes.
Environmentally friendly & stable LiFePO4 battery
High performance Samsung LEDs
Screwless gear tray fixing & rotating tabs that lock in to gear tray support easy installation
Water & dust proof, supported by IP65 rating
IPART, VEET & REES approved for rebates in NSW, VIC & SA.
Compelling project paybacks of under 2 years for lighting retrofits
Luminaire efficacy of up to 142 lumens per watt
Suited for both indoor & outdoor use

Vico Install Licence Plates Blurred 1920Px Web

Vico Install Licence Plates Blurred 2 1920Px Web

Applications

Technical Info

PRODUCT RANGE

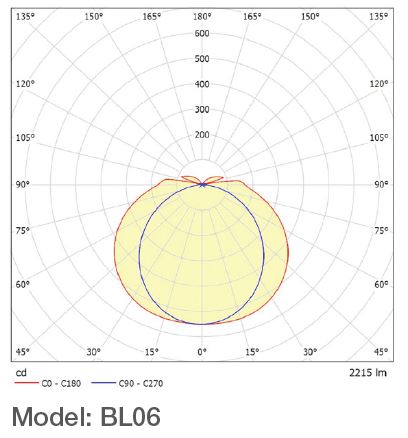

BL06	600mm standard
BL06S	600mm with MW sensor
BL06E	600mm emergency
BL06ES	600mm emergency with MW sensor
BL12	1200mm standard
BL12S	1200mm with MW sensor
BL12E	1200mm emergency
BL12ES	1200mm with MW sensor
BL15	1500mm standard
BL15S	1500mm with MW sensor
BL15E	1500mm emergency
BL15ES	1500mm emergency with MW sensor

Please note that due to upgrades in our batten lights we have changed our product codes. Download the document to discover the new product code translation.

OPTICAL
Light source	Samsung LED
Lumen output	2215 - 5710 lumen
CRI	Ra>80
CCT	5000K standard, 4000K and 5700K available on request

ELECTRICAL
Power consumption	16W-42W full light output
Operating frequency	50/60 Hz
Operating voltage range	220 -240 V AC

EMERGENCY LIGHT
Battery type	6.4V 3000 mAh LiFePO4
Discharge time	90 minutes

ENVIRONMENTAL
IP rating	IP65
Impact rating	IK10
Weight	600mm - 1.8kg, 1200mm - 2.9kg, 1500mm - 3.4kg
Ambient temperature range	-25°C to +40°C(standard models) 0°C to +40°C(emergency models)

CONTROLS - OPTIONAL
Microwave sensor range	360 deg; max 8m - adjustable
Microwave sensor operating interval	5 sec to 3 min (default setting 30 sec)
