Zorro

ROBUST AND RELIABLE Street/area/food light

Overview

The Zorro area light offers superior performance and reliability. It is a high efficiency exterior car park and external walkway lighting solution. This light has an integrated PE cell option which allows the fitting to automatically switch on at dusk and off at dawn. This versatile light comes in a wide range of power and lens options to suit your application.

$ Rebates

Product Downloads

Click the below links to download guides, datasheets and more.

Zorro Datasheet (1122.1KB)
Enlighten Zorro Installation Instructions (2316.5KB)

Secure Zone Documents

Highlights

Key Features

Sleek low profile design available in silver or black
Modular design offering a broad range of lumen outputs and light distribution
High performance Lumileds LUXEON TX LEDs

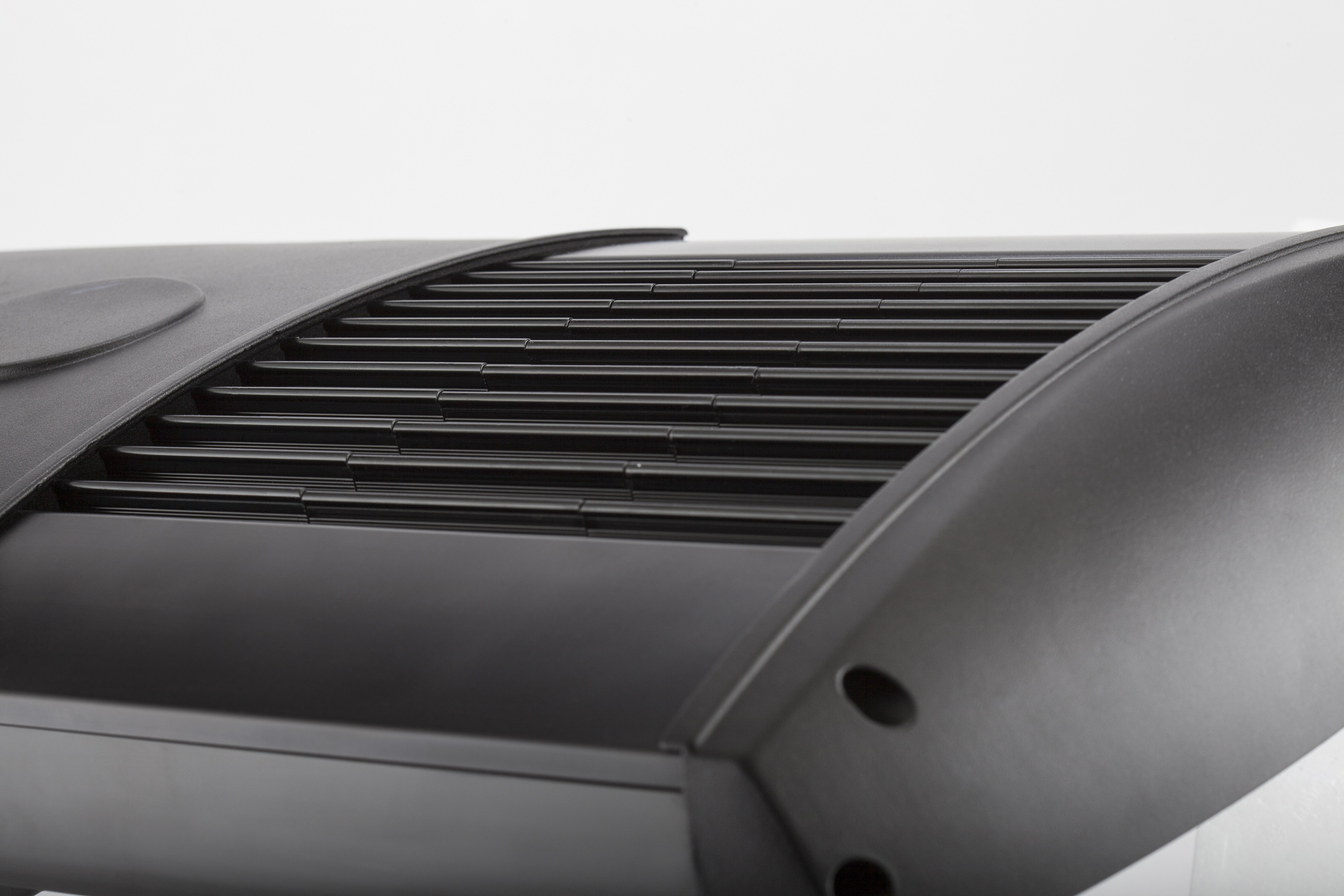

Breather gaps between modules increase heat transfer to maximise LED performance
Easy fit universal mountings and connectors – ability to fit square and round poles
Adjustable spigot offers horizontal and vertical installation
Integrated PE option available to switch off during the daylight hours
Optional low voltage DC drivers for solar/battery powered interface

Applications

Technical Info

MODEL	DIMENSIONS (mm)	LUMEN OUTPUT (Lm)	Rated Power (W)
LD35H-4000-TX-YYY	431 x 316 x136	3,906	35
LD65H-4000-TX-YYY	504 x 316 x 136	7328	65
LD100H-4000-TX-YYY	577 x 316 x 136	11,234	100
LD135H-4000-TX-YYY	650 x 316 x 136	15,049	135
LD165H-4000-TX-YYY	723 x 316 x 136	18,400	165
LD200H-4000-TX-YYY	796 x 316 x 136	22,220	200
LD230H-4000-TX-YYY	869 x 316 x136	25,465	230

OPTICAL
Light source	Lumileds LEDs
Lumen output	3,906- 25,465 lm
CRI	Ra>70
CCT	4000K standard; 3000K, 5000K & 5700K optional
Luminaire efficacy	up to 113 lm/W
Lens Angle	TI, TII, TIII, TV

ELECTRICAL
Power consumption (W)	35, 65, 100, 135, 165, 200, 230
Operating frequency	50/60 Hz
Operating voltage range	100 - 240V AC
Power factor	>0.9/240V AC at full load
Maximum current	0.18A, 0.33A, 0.51A, 0.69A, 0.85A, 1.03A, 1.18A/240V
Driver type	MEANWELL
Driver efficiency	>90%

ENVIRONMENTAL
IP rating	IP66
Impact rating	IK10
Weight	5.3 - 10.8kg
Ambient temperature range	-40°C to +50°C
Material composition (body)	Die-cast aluminium
Material composition (heat sink)	Anodized aluminium
Expected lifespan	>140,000 hours @ L70
